Modular Pontoons, Boat Docks and Waterfront Access Systems
Official UK Distributor - BulDock Floating PontoonsMurlac is the UK distributor for the BulDock range of modular floating pontoons, Jet Ski docks, drive-on boat platforms and accessories.
From private landing stages and swimming platforms to commercial marinas, work platforms and complete waterfront installations, Murlac can specify, supply and install a system developed around the site.
Request A Pontoon Quotation
A Complete Modular Floating System
BulDock pontoons are manufactured from UV-protected high-density polyethylene and use individual floating modules connected together to create bespoke layouts.
The modular construction allows pontoons to be formed into walkways, platforms, finger berths, landing stages, drive-on docks and larger floating areas. Systems can also be extended or reconfigured as requirements change. (BulDock)
Murlac can assist with the pontoon layout, freeboard selection, access, anchoring, accessories, delivery and installation.
Standard and Bespoke Colour Options

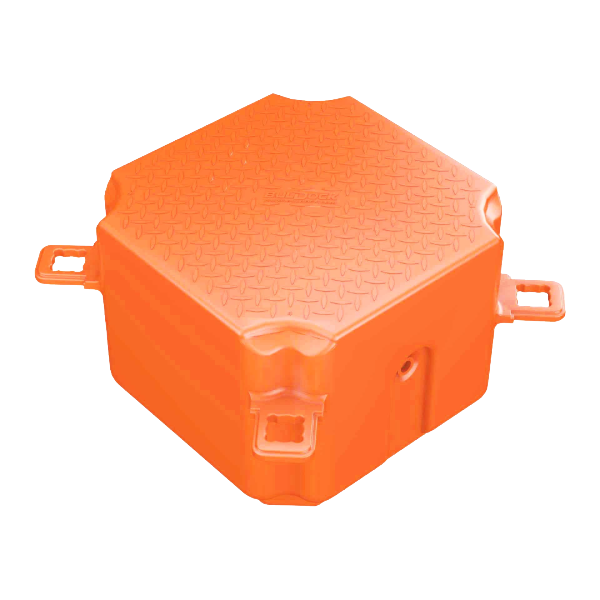

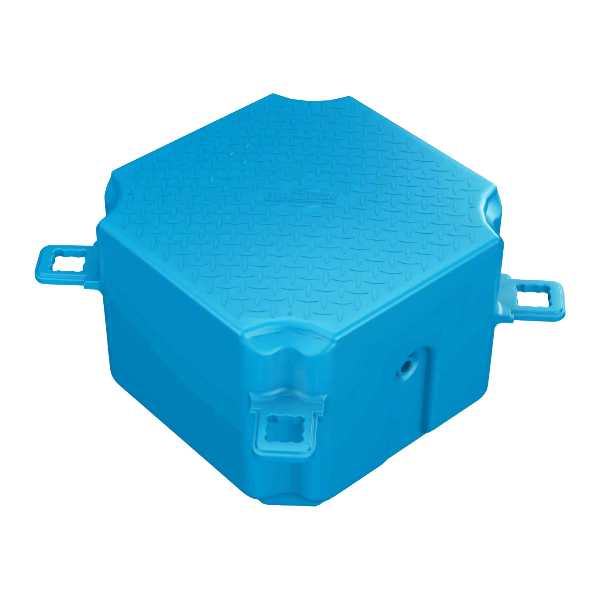

BulDock modules are available in a selection of colours to suit private, commercial and public installations.
Blue
Orange
Beige
Grey
DRIVE-ON PERSONAL WATERCRAFT DOCKING
Modular Docks for Jet Skis and Personal Watercraft
BulDock Jet Slider systems allow personal watercraft to be driven out of the water and stored on a floating dry-dock arrangement. The system uses specially shaped V-Cube modules, available in flat and roller configurations.
V-Cube H40 Flat
Dimensions: 500 × 500 × 400 mm
Weight: 8 kg
Published flotation capacity: 80 kg per module or 320 kg/m²
The shaped surface guides and supports the hull while maintaining compatibility with the wider H40 pontoon system.
V-Cube H40 Roller
Dimensions: 500 × 500 × 400 mm
Weight: 8.5 kg
Published flotation capacity: 80 kg per module or 320 kg/m²
Integrated rollers assist with launching and recovery of the watercraft.
V-Cube H27 Flat
Dimensions: 500 × 500 × 270 mm
Weight: 7.5 kg
Published flotation capacity: 50 kg per module or 200 kg/m²
A lower-profile option for Jet Slider configurations connected to H27 pontoons.
V-Cube H27 Roller
Dimensions: 500 × 500 × 270 mm
Weight: 8.5 kg
Published flotation capacity: 50 kg per module or 200 kg/m²
The lower roller module can be combined with the wider Jet Slider system to create a controlled drive-on and launch arrangement.
Shaped Roller Modules for Smaller Boats
The V-shaped layout centres the hull while the rollers assist with launching and recovery. The overall platform size and number of buoyancy modules are selected around the dimensions, weight and hull form of the boat.

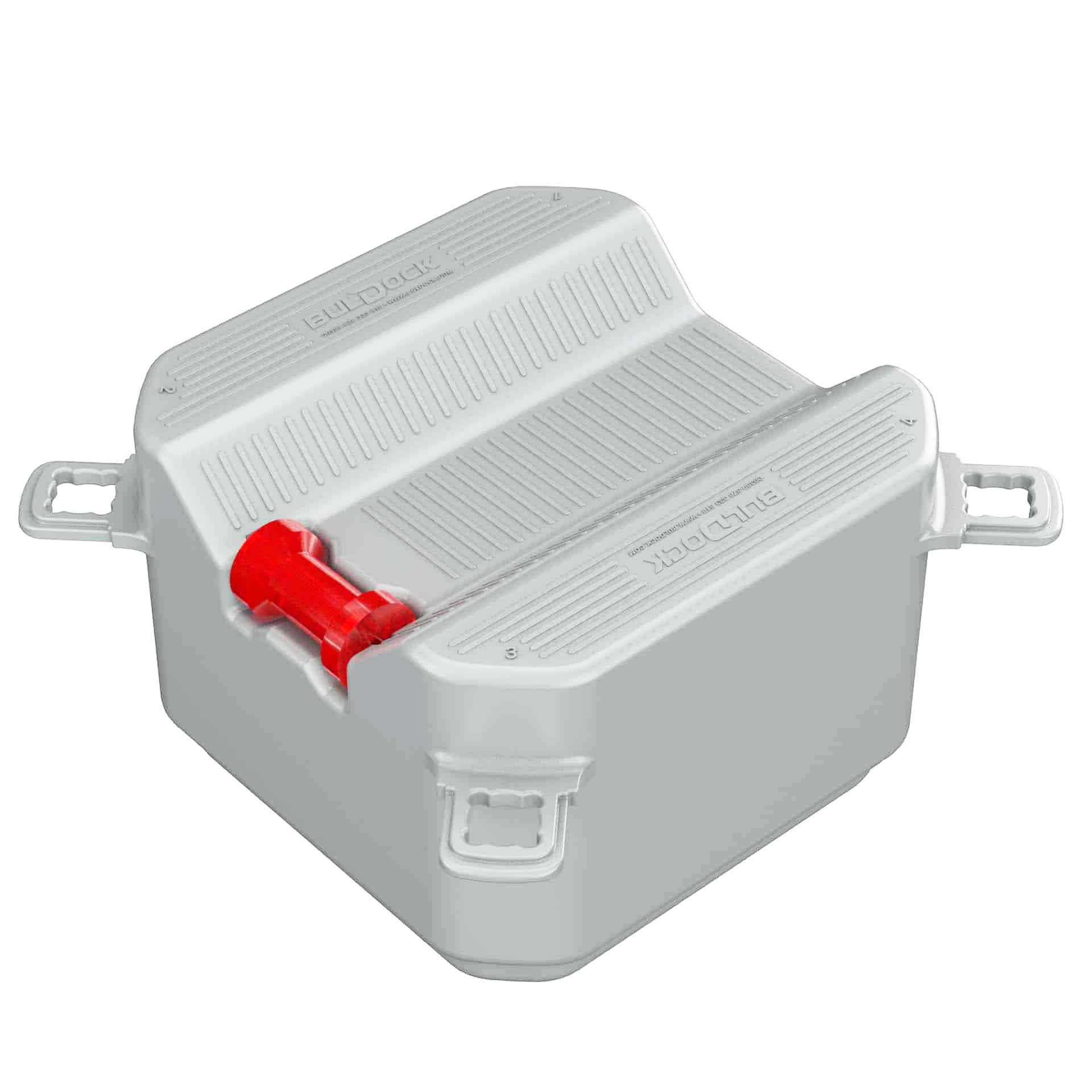

V-Cube H35 Roller
Dimensions: 500 × 500 × 350 mm
Weight: 8 kg
Published flotation capacity: 50 kg per module or 200 kg/m²

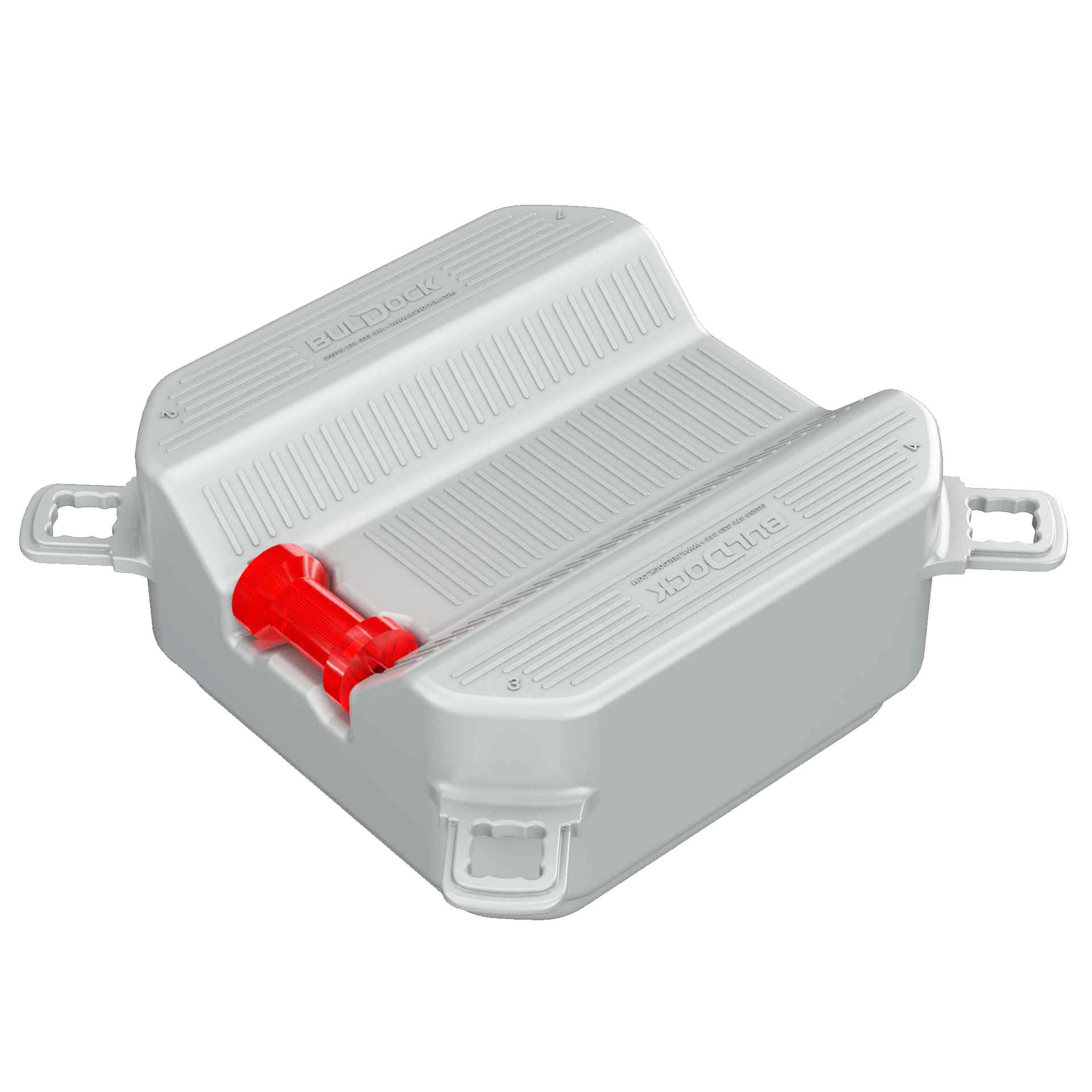

V-Cube H25 Roller
Dimensions: Approximately 500 × 500 × 250 mm
Weight: 8 kg
Published flotation capacity: 50 kg per module or 200 kg/m²

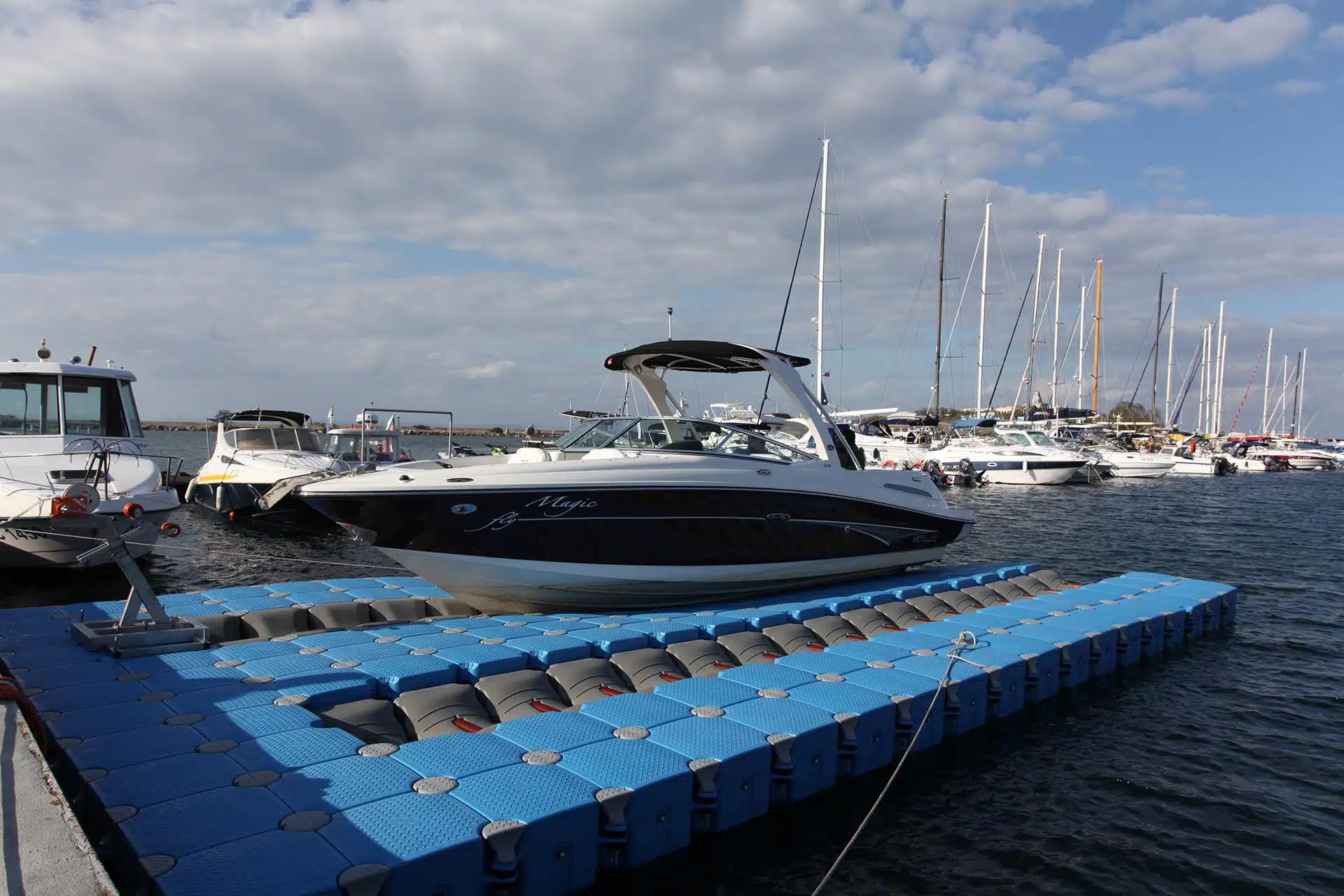

WIDER DRIVE-ON DOCKING SYSTEMS
Long Pontoon Modules for Boat Support
U-Slide 40 Roller
Dimensions: 1,000 × 500 × 400 mm
Weight: 12 kg
Published flotation capacity: 150 kg per module or 300 kg/m²
U-Slide 30 Roller
Dimensions: 1,000 × 500 × 300 mm
Weight: 12 kg
Published flotation capacity: 100 kg per module or 200 kg/m²

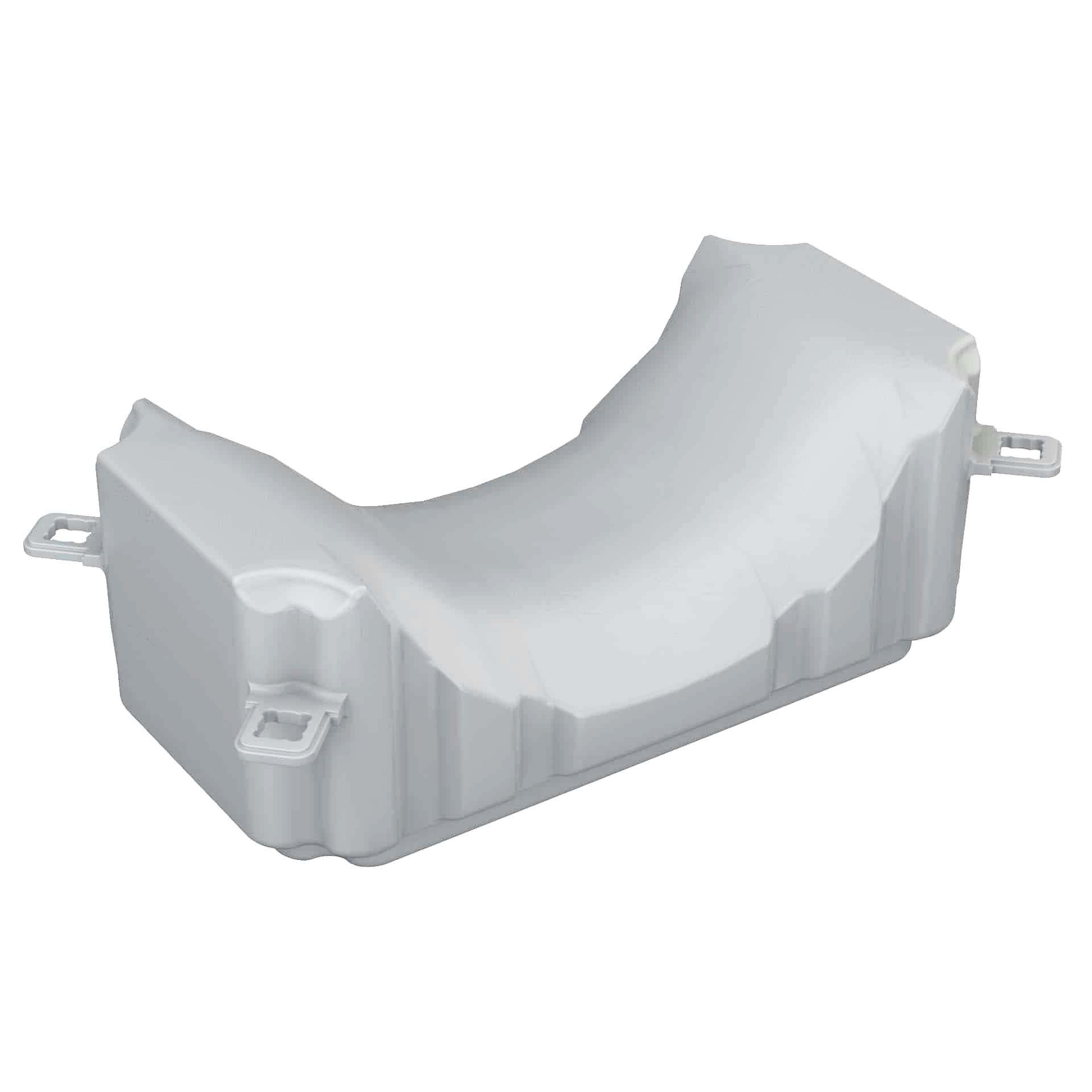

U-Slide 40
Dimensions: 1,000 × 500 × 400 mm
Weight: 10.5 kg
Published flotation capacity: 150 kg per module or 300 kg/m²
TECHNICAL INFORMATION
Compare All Pontoon Styles
| Product | Dimensions | Weight | Published Flotation Capacity |
|---|---|---|---|
| Cube H40 | 500 × 500 × 400 mm | 6.8 kg | 92 kg per float / 368 kg/m² |
| Cube H27 | 500 × 500 × 270 mm | 5.5 kg | 248 kg/m² |
| E-Cube H40 | 500 × 500 × 400 mm | 6.8 kg | 92 kg per float / 368 kg/m² |
| V-Cube H40 Flat | 500 × 500 × 400 mm | 8 kg | 80 kg per float / 320 kg/m² |
| V-Cube H40 Roller | 500 × 500 × 400 mm | 8.5 kg | 80 kg per float / 320 kg/m² |
| V-Cube H27 Flat | 500 × 500 × 270 mm | 7.5 kg | 50 kg per float / 200 kg/m² |
| V-Cube H27 Roller | 500 × 500 × 270 mm | 8.5 kg | 50 kg per float / 200 kg/m² |
| V-Cube H35 Roller | 500 × 500 × 350 mm | 8 kg | 50 kg per float / 200 kg/m² |
| V-Cube H25 Roller | Approx. 500 × 500 × 250 mm | 8 kg | 50 kg per float / 200 kg/m² |
| U-Slide 40 Roller | 1,000 × 500 × 400 mm | 12 kg | 150 kg per float / 300 kg/m² |
| U-Slide 30 Roller | 1,000 × 500 × 300 mm | 12 kg | 100 kg per float / 200 kg/m² |
| U-Slide 40 | 1,000 × 500 × 400 mm | 10.5 kg | 150 kg per float / 300 kg/m² |
BUILT AROUND THE WATERFRONT
Pontoon Systems for Different Applications
BulDock promotes the system for marinas, hotels, events, paddle-hire operations, boat-rental fleets and marine industrial projects.
Private lakes and waterfront homes
Marinas and finger berths
Boat and Jet Ski docks
Swimming platforms
Fishing platforms
Kayak and paddleboard launches
Hotels and leisure facilities
Commercial marine access
COMPLETE THE INSTALLATION
Access, Mooring and Operational Equipment
The BulDock range includes accessories for private, commercial and marina installations.
Available equipment includes:
Gangways
Access between the shore and floating pontoon, allowing for changes in water level.Handrails
Edge protection for walkways, public access areas and operational pontoons.Boarding Ladders
Access for swimmers, watersports users and emergency recovery.Cleats and Mooring Rings
Mooring points for boats, tenders and personal watercraft.Fenders
Protection between the pontoon, boats and fixed structures.Dock Lighting
Low-level lighting for access routes, edges and marina applications.Planning a Permanent Floating Pontoon?
DESIGN YOUR PONTOONSend us the location, intended use, approximate dimensions, preferred colour and any available photographs or drawings.
Murlac can recommend the appropriate BulDock modules, drive-on docking products, accessories and anchoring arrangement before providing a supply or installed quotation.
